Example: the ToolJet monorepo

ToolJet is the repository Canopy was developed against, and it exercises the harder parts: a monorepo with a separate frontend and server, git submodules with their own tracked branches, a plugins package that has to be built per worktree, and an engine-strict Node pin.

Services#

The frontend takes its own port from $PORT. The server reads PORT from the worktree's .env.

.worktreemanager.json#

{
  "$schema": "canopy://worktree-manager/v1",
  "provision": [
    {
      "path": ".env",
      "format": "dotenv",
      "keys": {
        "PG_DB": "${WT_DB_NAME}",
        "PORT": "${WT_SERVER_PORT}",
        "TOOLJET_SERVER_PORT": "${WT_SERVER_PORT}",
        "TOOLJET_HOST": "http://localhost:${WT_FRONTEND_PORT}"
      }
    }
  ],
  "setup": [
    "npm install",
    "npm --prefix plugins install && npm --prefix plugins run build",
    "npm --prefix frontend install",
    "npm --prefix server install",
    "npm run db:create && npm run db:migrate"
  ],
  "migrate": ["npm run db:migrate"],
  "teardown": ["npm run db:drop"]
}

Three common failure modes#

1. TOOLJET_SERVER_PORT is baked at launch#

The frontend works out the server URL from process.env.TOOLJET_SERVER_PORT when webpack starts, falling back to 3000. Leave it out of the worktree's .env and every worktree's UI talks to the main checkout's server, which looks like a database bug and isn't one.

So TOOLJET_SERVER_PORT comes from the provisioned .env as ${WT_SERVER_PORT}, while the frontend's own port comes from --port $PORT in its command. Two mechanisms, both required.

2. Plugins have to be built per worktree#

The server imports @tooljet/plugins/dist/server. A worktree that skipped the plugins build fails its migrations with Cannot find module @tooljet/plugins/dist/server, which reads like a database problem and is a build-order problem. That's why the second setup step comes before the frontend and server installs.

3. Node 22, strictly#

ToolJet's server is engine-strict on Node 22.15.1. If your version manager's global default is older, npm install fails with notsup.

Canopy handles this without configuration. It reads the worktree's .nvmrc, .node-version or .tool-versions, finds that version's bin directory in asdf, nvm or fnm, and prepends it to PATH for every command it runs in that worktree: setup, services, migrate, reset, teardown, custom commands. Make sure the pinned version is installed:

asdf install nodejs 22.15.1     # or nvm install 22.15.1

Submodules#

ToolJet carries submodules, and .gitmodules tracks a branch for at least one of them (something like branch = lts-3.16). Two operations, kept distinct:

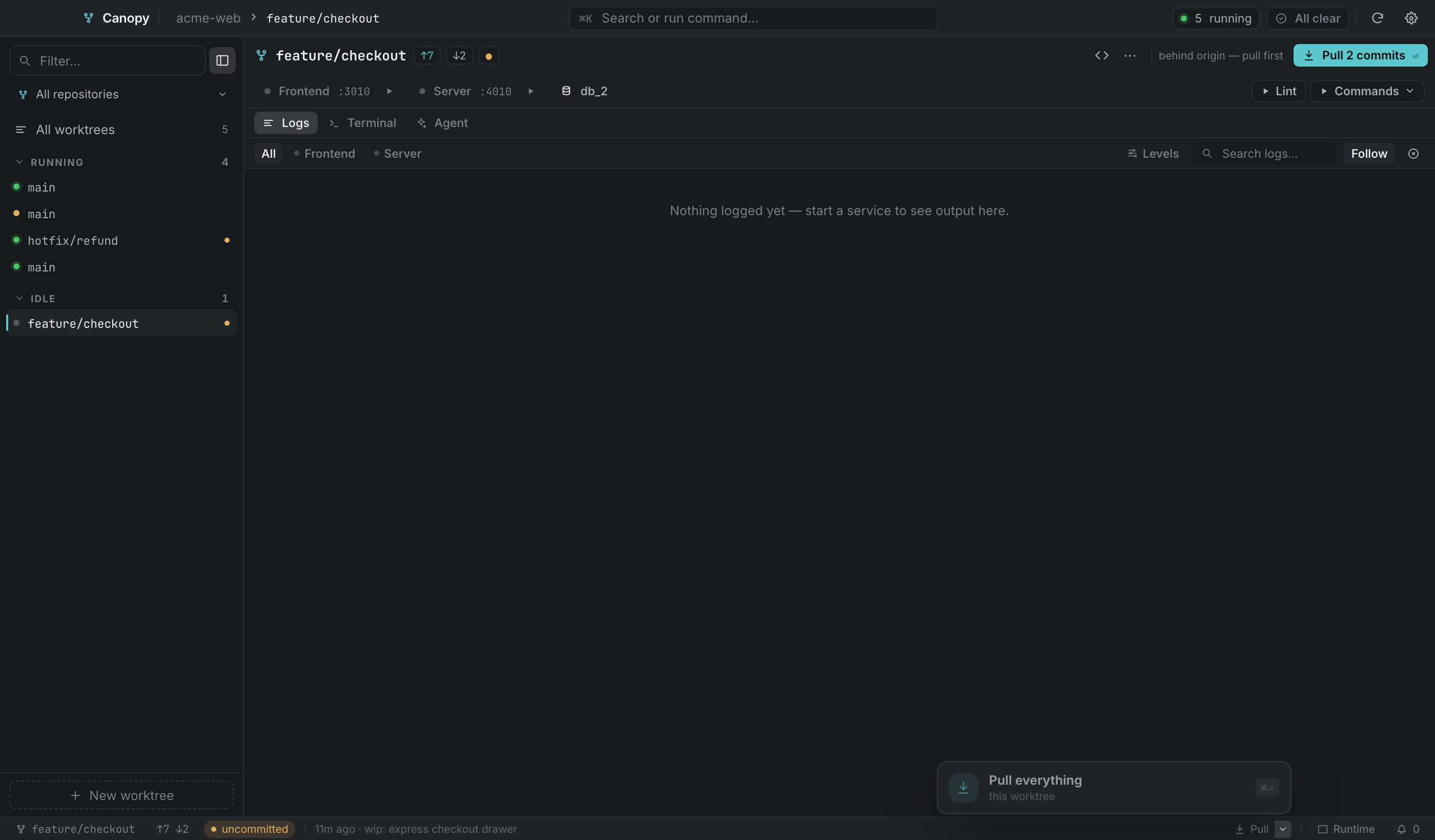

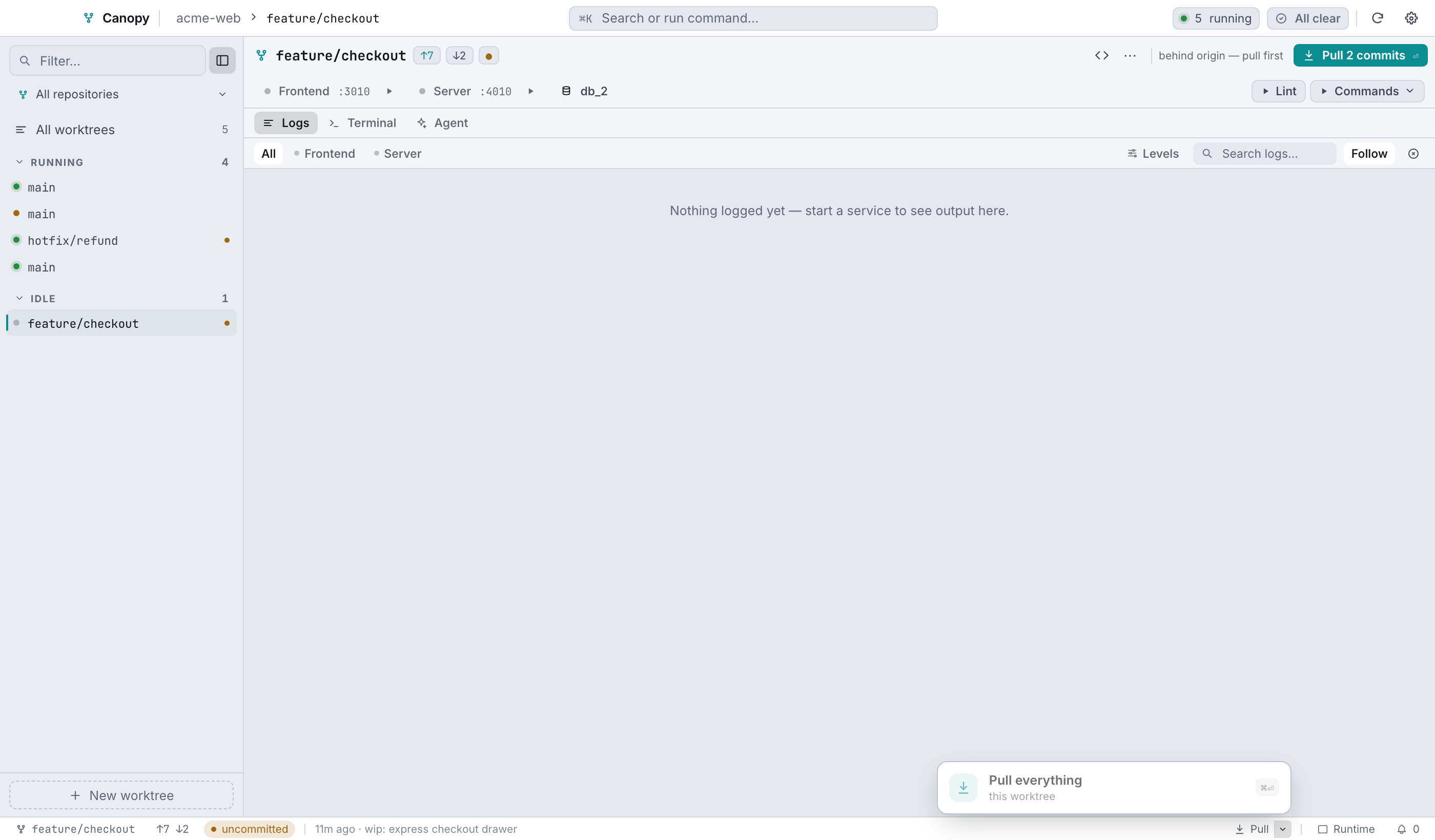

The pull popover's caret gives you per-submodule control: a status dot, its branch or detached <sha>, an ahead of pin marker, a branch switcher, and its own pull button.

Worktree creation initialises submodules with --reference against the main checkout, so a new worktree doesn't re-clone them. That matters when they're large.

Suggested commands#

The first row gets its own button in the service rail, and the rest collapse into the Commands menu under their group headings.

Databases#

With repository id tooljet, a worktree folder feat_history_state gives tooljet_feat_history_state. Every worktree points at the same Postgres server and differs only in database name.

A typical day#

1. Sync in the top bar, which rescans worktrees and reconciles anything deleted on disk.
2. Select the branch you're on and press ⏎ to start frontend and server on its own ports.
3. Status bar Pull, then the database dialog's Run migration when migrations landed upstream.
4. ⌘2 to put the agent beside the logs, ⋯ → Context… to give it the issue and the acceptance criteria, then Start agent.
5. Review with the status bar's uncommitted chip → Commit.
6. When the branch merges: ⋯ → Remove worktree…, keeping Drop database ticked.
